2.5mm 3 Core and Earth Flat Cable, Solid Copper Conductor, 300/500V, PVC 85°C Insulation, Gray Sheath, 50 meter Length | Saudi Cable Company
(498 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

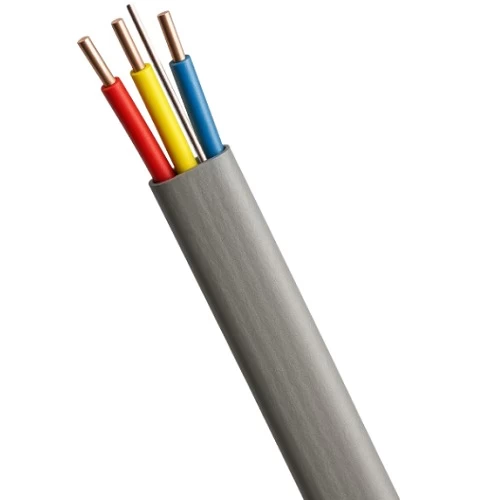

Solid copper flat cable with earth Conductor (CU/PVC/PVC), 3 core, 2.5mm2 cross-sectional area, low voltage 300/500V. 85°C PVC insulation, gray sheath, 50 meter. Used in general electrical installations, providing effective insulation with flexible routing.
Product description
Solid copper electrical flat cable with earth conductor (CU/PVC/PVC), low voltage 300/500V. Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. These cables are suitable for operation at voltages up to and including 300 Vrms to earth and 500 Vrms between conductors. Typical applications include indoor and outdoor wiring of residential and commercial buildings, warehouses and shops. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 2.5mm2
- Number of Wires: 1
- Earth Continuity Conductor (no.xmm): 1x1.13 mm
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.0 mm
- Overall Diameter: 14.5x6.2 mm
- Weight: 153 kg/km
- Length: 50 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Gray
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: AGG3-05H
