1.5mm 2 Core Solid Copper Flat Cable with Earth Conductor, 300/500V, PVC 70°C Insulation, Black Sheath, 100 meter/Drum | Saudi Cable Company
(445 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

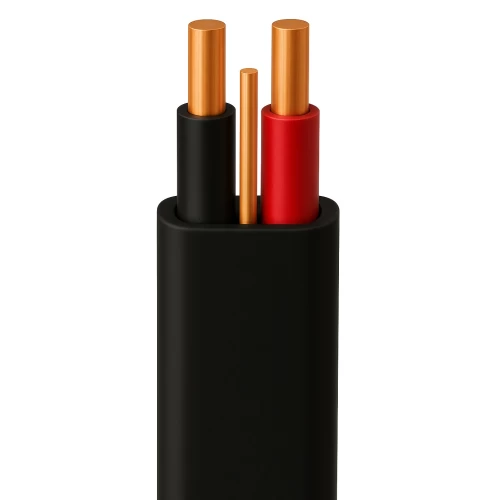

Solid copper electrical flat cable with Earth Conductor (CU/PVC/PVC), 2 core, 1.5mm2 cross-sectional area, low voltage 300/500V. Manufactured by Saudi Cable Company (SCC). (PVC 70°C) insulation offers excellent protection, while the black sheath ensures resistance to corrosion. Ideal for electrical installations.
Product description
Solid copper electrical flat cable with earth conductor (CU/PVC/PVC), low voltage 300/500V. Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. These cables are suitable for operation at voltages up to and including 300 Vrms to earth and 500 Vrms between conductors. Typical applications include indoor and outdoor wiring of residential and commercial buildings, warehouses and shops. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 1.5mm2
- Number of Wires: 1
- Earth Continuity Conductor (no.xmm): 1x1.13 mm
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 0.9 mm
- Overall Diameter: 9.6x5.4 mm
- Weight: 77 kg/km
- Length: 100 meter / Coil
- Insulation Color: (Red, Black)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: ABG2-04H
