10 sq mm Two Core Solid Copper Electrical Cable 300/500 Voltage Rating, PVC 70°C Insulation, Gray Color, 1000 M/Drum | Saudi Cable Company
(513 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

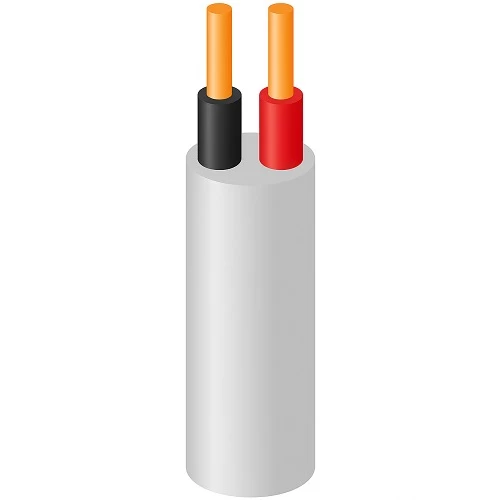

Solid copper electrical cable (CU/PVC/PVC), 2 core, 10 sq mm, low voltage 300/500V, with PVC 70°C insulation and gray sheath, 1000 meter drum, offering stable performance and long lifespan across applications, Produced by Saudi Cables Company.
Product description
Solid copper electrical cable (CU/PVC/PVC). Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for industrial and residential wiring applications, fixed wiring, concealed in conduits or exposed on insulators, and in switching panels and distribution boards. These cables may be used in wet or dry locations and in outdoor applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 1
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 15.5 mm
- Weight: 416 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: ABH2-08H
