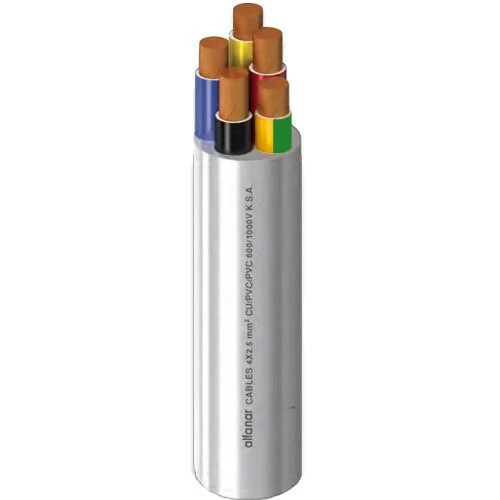

Alfanar 6sq mm 5 Core Electrical Cable 600/1000V, Flexible Copper, PVC Insulated and Sheathed
(1285 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Electrical Cable 6 mm2 5 core 600/1000V, flexible copper, PVC insulated and sheathed, Ideal for both indoor and outdoor installations, and underground environments where there is no risk of mechanical damage, insulation color (red, yellow, blue, black, yellow/green), produced by Alfanar Company.
Product description
Flexible electrical copper cable (CU/PVC/PVC), Produced by Alfanar Company according to International standards and specifications, which ensures its quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Ideal for both indoor and outdoor installations in cable ducts, power and switching stations, industrial plants, and underground environments where there is no risk of mechanical damage. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride) 70 ยฐC
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Cable Type: (H05VV-F)
- Number of Cores: 5
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 84
- Wire Diameter: 0.3 mm
- Nominal Insulation Thickness: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Overall Diameter: 17.1 mm
- Weight: 585 kg/km
- Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
- Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
- Standard: IEC 60502-1
