1mm 2 Core LV Cable, 300/500V, Flexible Copper Conductor, PVC Insulated and Sheathed | Nohascom

1mm 2 Core LV Cable, 300/500V, Flexible Copper Conductor, PVC Insulated and Sheathed | Nohascom

(732 Product Views)

YouMats

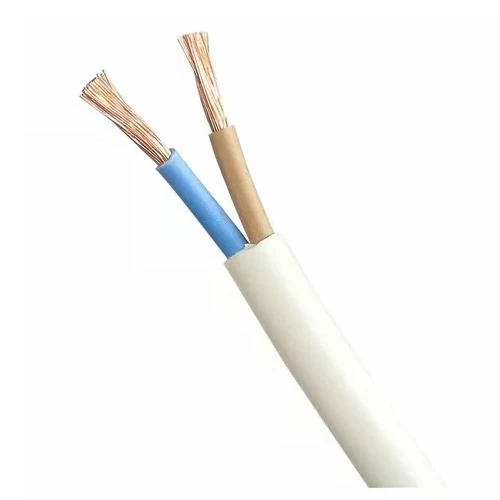

Flexible copper electrical cable (CU/PVC/PVC), 2 core, 1mm2 cross-sectional area, low voltage 300/500V, Brown and blue in color, this cable can be used in a variety of applications, from portable electrical devices such as pumps and motors to home and office appliances, from Nohascom Company.

in stock
 Call Now

Product description

Flexible copper electrical cable (CU/PVC/PVC), Produced by Nohascom Company. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Designed for use with mobile electrical units, including pumps and motors. Ideal for applications requiring highly flexible cables, such as household appliances, office equipment, and prefabricated houses. Available in a variety of sizes and colors with highest quality and best prices.

  • Conductor: Copper
  • Conductor Shape: Flexible Copper Conductor (Class 5) as Per IEC 60228
  • Insulation Material: PVC (Polyvinyl Chloride) 70 ยฐC
  • Outer Sheath: PVC
  • Voltage: 300/500 volts
  • Number of Cores: 2
  • Conductor Size (Cross-Sectional Area): 1 mm2
  • Number of Wires: 32
  • Wire Diameter: 0.2 mm
  • Nominal Insulation Thickness: 0.6 mm
  • Nominal Sheath Thickness: 0.8 mm
  • Overall Diameter: 6.7 mm
  • Weight: 62 kg/km
  • Insulation Color: (Brown, Blue)
