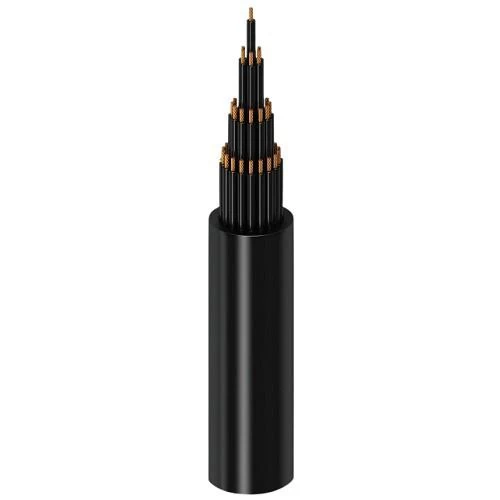

Seven Core 4mm Stranded Copper Control Cable, Low Voltage 0.6/1kV, PVC Insulated | Alfanar

Stranded Copper Control Cable, Seven Core (CU/PVC/PVC), Manufactured by Alfanar Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Insulated and sheathed with PVC material, which provides excellent insulation around the conductor. The outer sheath also provides additional protection for the cable against shocks, friction, corrosion, and harmful UV rays. In addition, it is highly resistant to water and moisture, making it suitable for indoor and outdoor use. Available in a variety of sizes with highest quality and best prices.

• Conductor Type: Copper
• Conductor Shape: Round Stranded (rm)
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Cores: 7
• Max DC Conductor Resistance at 20°C: 4.6100 ohm/km
• Max AC Conductor Resistance at 70°C: 5.5159 ohm/km
• Current Rating Laid in Ground: 25 Ampere
• Current Rating Laid in Ducts: 18 Ampere
• Current Rating Laid in Free Air: 22 Ampere
• Approx Overall Diameter: 17.9 mm
• Weight: 535 kg/km
• Phase Core Color: Black
• Standard: IEC 60502-1
