37x4mm² 600/1000 volts Control Cable, Solid Copper Conductor, PVC Insulated and Sheathed | Jeddah Cables

37x4mm² 600/1000 volts Control Cable, Solid Copper Conductor, PVC Insulated and Sheathed | Jeddah Cables

(772 Product Views)

YouMats

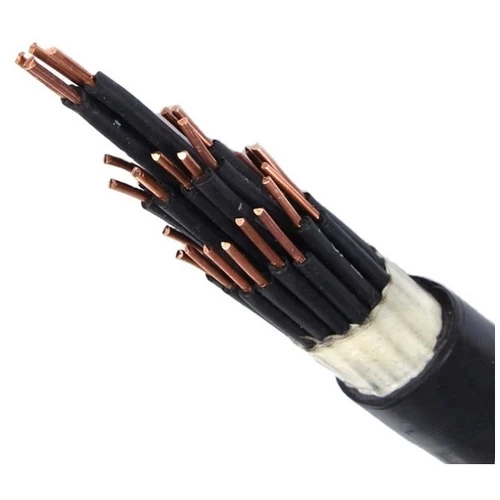

Solid copper control cable, 37 cores (CU/PVC/PVC), size 4 mm². Used in complex industrial applications, providing excellent corrosion protection. Produced by Jeddah Company.

in stock
 Call Now

Product description

Solid Copper Control Cable, (CU/PVC/PVC), produced by Jeddah Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Insulated and sheathed with PVC material, which provides excellent insulation around the conductor. The outer sheath also provides additional protection for the cable against shocks, friction, corrosion, and harmful UV rays. Additionally, it has high resistance to water and moisture, making it suitable for indoor and outdoor use. Available in a variety of sizes with the highest quality and best prices.

  • Conductor Type: Copper
  • Conductor Shape: Solid Copper
  • Voltage: 600/1000 volts
  • Insulation Material: PVC Compound Rated 70°C or 85°C (XLPE or LSHF)
  • Jacketing: PVC Compound (or LSHF)
  • Number of Cores: 37
  • Conductor Size (Cross-Sectional Area): 4 mm2
  • Nominal Insulation Thickness: 1.0 mm
  • Nominal Sheath Thickness: 2.1 mm
  • Approx Overall Diameter: 37.1 mm
  • Weight: 2510 kg/km
  • Max DC Conductor Resistance at 20°C: 4.61 ohm/km
  • Current Rating Laid in Ground: 18 Ampere
  • Current Rating Laid in Ducts: 16 Ampere
  • Current Rating Laid in Free Air: 14 Ampere
  • Standard: IEC 60502-1
