Solid Copper Cable 2.5mm 3 Core 0.6/1kV, SWA Armored, PVC Insulation, 1000 meter/drum | Red Sea Cables
(757 Product Views)

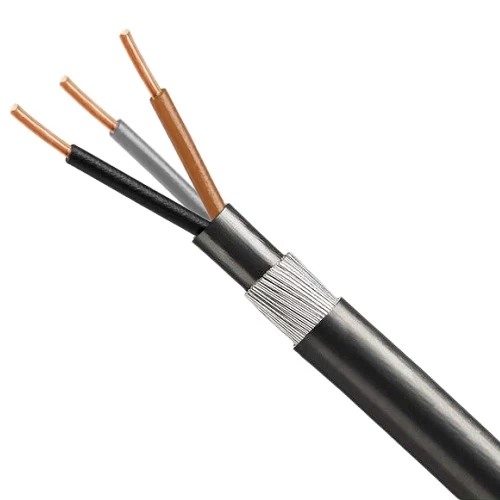

Armoured solid copper power cable (CU/PVC/SWA/PVC), three core, 2.5mm2 size conductor, 0.6/1kV, Produced by Red Sea Cables (RESCAB) Company. Suitable for both indoor and outdoor applications where there is a risk of mechanical damage.
Product description
Armoured solid copper power cable (CU/PVC/SWA/PVC), three core, Produced by Red Sea Cables (RESCAB) Company. Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Number of Wires: 1
- Nominal Insulation Thickness: 0.8 mm
- Nominal Steel Wire Diameter: 0.8 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 16 mm
- Max DC Conductor Resistance at 20°C: 7.41 ohm/km
- Weight: 480 kg/km
- Standard Length: 1000 meters
- Phase Core Colors: Brown, Black, Gray
- Standard: BS 5467, 6346 Latest
