6mm 3 Core 0.6/1kV Armored Cable, CU/PVC/SWA/PVC, Stranded Copper, 1000 meter Length | BAHRA
(829 Product Views)

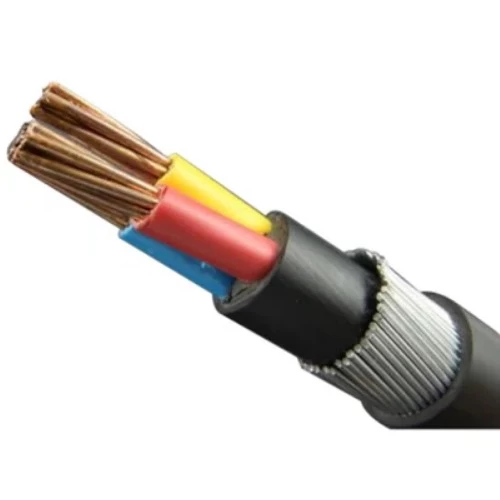

Armored stranded copper power cable (CU/PVC/SWA/PVC), 3 phase, 6mm2 size conductor, Low Voltage 0.6/1kV, The cable is manufactured according to international standards of quality and safety, red, yellow, blue, produced by Bahra Cables Company.
Product description
Armored stranded copper power cable (CU/PVC/SWA/PVC), Produced by BAHRA Cables Company. Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1 mm
- Nominal Steel Wire Diameter: 1.25 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18.9 mm
- Weight: 766 kg/km
- Standard Packaging Cable: 1000 meters
- Phase Core Colors: (Red, Yellow, Blue)
- Standard: IEC 60502-1
