50sq mm 4 Core 0.6/1kV Cable, Stranded Copper, PVC Insulated, SWA Armoured, 500 meter Length | BAHRA
(980 Product Views)

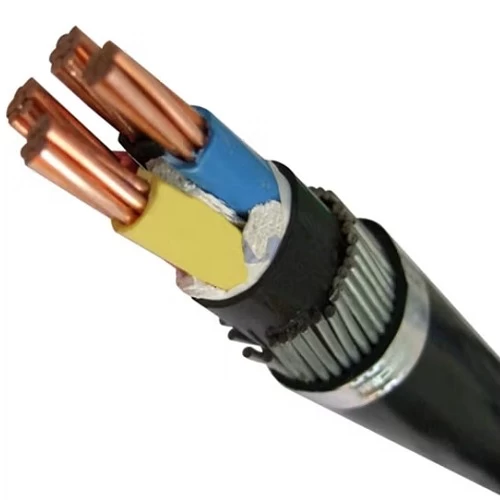

Cable (CU/PVC/SWA/PVC), 4 Core 50mm 0.6/1kV, Stranded Copper, PVC Insulated, Armoured with Galvanized Steel, Highly Durable for Industrial Use and High Load Areas. 500-meter Length, known for its superior reliability. Produced by BAHRA Cables Company.
Product description
Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 50 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.4 mm
- Nominal Steel Wire Diameter: 2.0 mm
- Nominal Sheath Thickness: 2.1 mm
- Approx Overall Diameter: 34.7 mm
- Weight: 3424 kg/km
- Standard Packaging Cable: 500 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
