25sq mm 0.6/1kV, 4C Electric Cable, Stranded Copper Conductor, PVC Insulation, SWA Armed, Length 1000 meter | RESCAB
(956 Product Views)

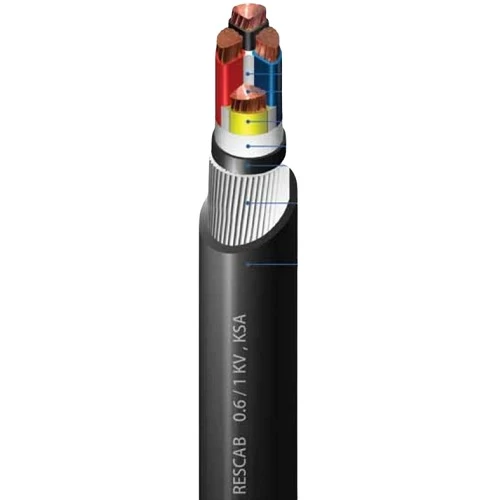

Armed stranded copper electric cable (CU/PVC/SWA/PVC), 4 core, 25sq mm size, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion.
Product description
Armoured stranded copper power cable (CU/PVC/SWA/PVC), produced by Red Sea Cables (RESCAB) Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 25 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Steel Wire Diameter: 1.6 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 31 mm
- Max DC Conductor Resistance at 20°C: 0.727 ohm/km
- Weight: 2210 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
