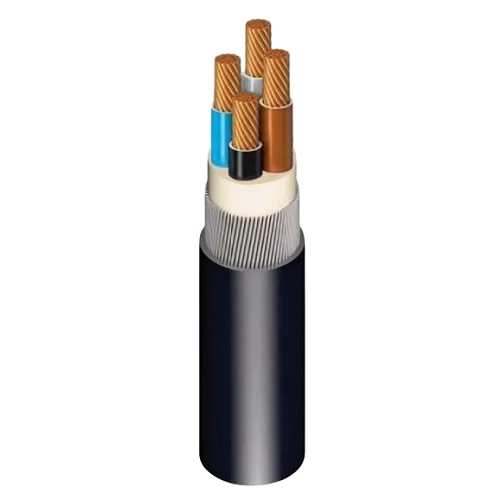

25mm Stranded Copper Cable 4 Core 600/1000V, SWA Armored, PVC Insulated, (Blue, Brown, Black, Gray) | Riyadh Cables
(1281 Product Views)
Armored copper cable (CU/PVC/SWA/PVC), 4 core stranded conductors, It is used to connect electrical current in various domestic, commercial and industrial applications, color (blue, brown, black, grey), size 25 × 4 mm2, Produced by Riyadh Cables Company.
Product description
Armored copper cable (CU/PVC/SWA/PVC), 4 core stranded conductors, Produced by Riyadh Cables Company, According with IEC 60502-1 (International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors. Used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation : PVC
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Wire Type: Round Stranded
- Number of Cores: 4
- Size (cross-sectional area) : 25 mm2
- Number of wires : 7
- Approx conductor diameter : 6.3 mm
- Thickness of first insulation layer : 1.2 mm
- Armour: Steel Wire (SWA)
- Nominal Steel Wire Diameter : 1.6 mm
- Nominal Sheath Thickness : 1.8 mm
- Approx Overall Diameter : 31 mm
- Weight : 2375 kg/km
- Length : 500 meters
- Core Colors : (Blue, Brown, Black, Gray)
- Conformity According to International Standard: IEC 60502-1
