25 mm SWA Armored Stranded 2 Core Copper Cable 600/1000 V, PVC Insulated, (Brown, Blue) | Riyadh Cables
(630 Product Views)

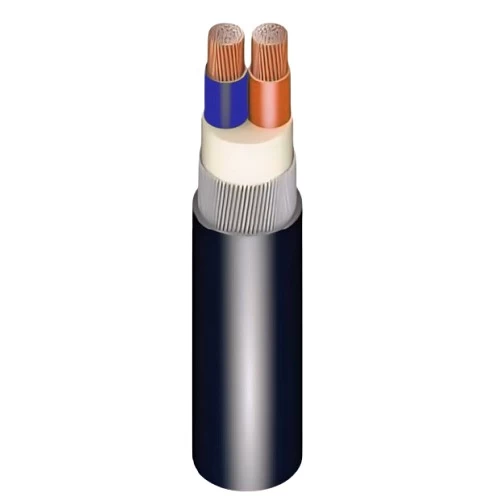

SWA Armored PVC copper cable 2 core stranded, Intended for fixed installations, indoors and outdoors, also used to conduct electrical current such as lighting equipment, size 25 mm2, length 1000 meters, (Brown, Blue) color, Produced by Riyadh Cables Company.
Product description
Armored copper cable (CU/PVC/SWA/PVC), 2 core stranded wire. Produced by Riyadh Cables Company. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors, also used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation: PVC
- Sheath: PVC
- Voltage: 600/1000 volts
- Wire Type: Round Stranded
- Number of Cores: 2
- Size (Cross-Sectional Area): 25 mm2
- Number of Wires: 7
- Approx Conductor Diameter: 6.3 mm
- Nominal Insulation Thickness: 1.2 mm
- Armour: Steel Wire (SWA)
- Nominal Steel Wire Diameter : 1.6 mm
- Nominal Sheath Thickness : 1.8 mm
- Approx Overall Diameter : 27 mm
- Weight : 1700 kg/km
- Length : 1000 meters
- Color : Brown, Blue
- Conformity According to International Standard: IEC 60502-1
