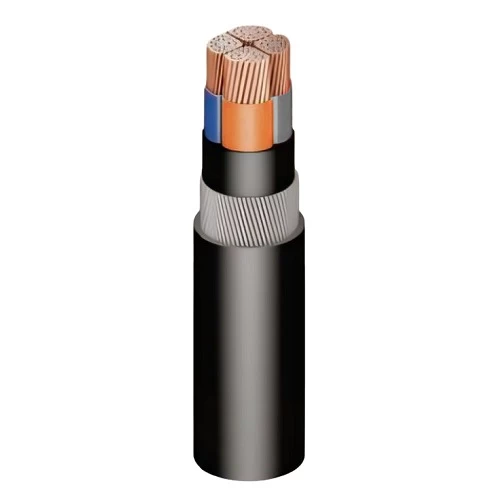

120mm Stranded Copper Cable 4 Core 600/1000V, SWA Armored, PVC Insulated, (Blue, Brown, Black, Gray) | Riyadh Cables
(1074 Product Views)
Armored copper cable (CU/PVC/SWA/PVC), 4 core stranded conductors, It is a good conductor of electricity. It is used as an insulator to prevent the leakage of electricity or current around it and for protection, size 120 × 4 mm2, Produced by Riyadh Cables Company.
Product description
Armored copper cable (CU/PVC/SWA/PVC), 4 core stranded conductors, Produced by Riyadh Cables Company, According with IEC 60502-1 (International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors. Used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation : PVC
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Wire Type: Sectoral Stranded
- Number of Cores: 4
- Size (cross-sectional area) : 120 mm2
- Number of wires : 18
- Thickness of first insulation layer : 1.6 mm
- Armour: Steel Wire (SWA)
- Nominal Steel Wire Diameter : 2.5 mm
- Nominal Sheath Thickness : 2.5 mm
- Approx Overall Diameter : 50 mm
- Weight : 7525 kg/km
- Length : 500 meters
- Core Colors : (Blue, Brown, Black, Gray)
- Conformity According to International Standard: IEC 60502-1
