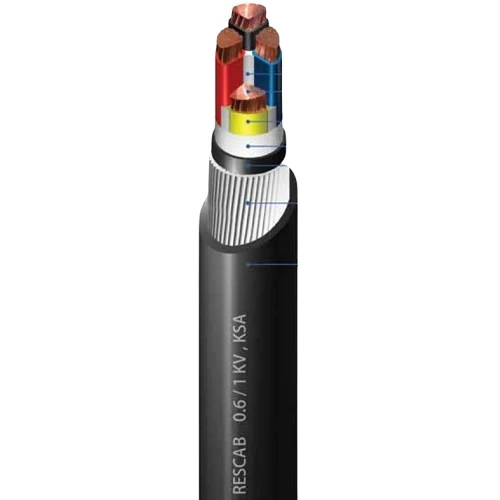

120mm 0.6/1kV, 4Core Cable, Stranded Copper Wire, PVC Insulated, SWA Armed, Length 500 meter | RESCAB
(716 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Armed stranded copper cable (CU/PVC/SWA/PVC), 4 core, 120mm2 size , 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, reinforced with galvanized steel wires SWA ensures high mechanical strength to protect the cable from external pressures and mechanical damage.
Product description
Armoured stranded copper power cable (CU/PVC/SWA/PVC), produced by Red Sea Cables (RESCAB) Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of Wires: 37
- Nominal Insulation Thickness: 1.6 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 52 mm
- Max DC Conductor Resistance at 20°C: 0.153 ohm/km
- Weight: 7700 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
Additional Information▼
When to Choose SWA Armoured Cables?
SWA (Steel Wire Armoured) cables are the best choice when there is a possibility of the cable being subjected to impacts, pressure, or friction during operation, burial, or pulling on-site. The steel wire armouring layer provides higher mechanical protection compared to unarmoured cables, while maintaining PVC insulation and sheathing for both indoor and outdoor use in low voltage applications.
Product Specifications (According to Rescab Data)
- Brand: Red Sea Cables (Rescab)
- Type: SWA Armoured Stranded Copper Cable (CU/PVC/SWA/PVC)
- Cable Rating: Low Voltage Cables
- Voltage: 600/1000 Volts (0.6/1 kV)
- Number of Cores: 4 Cores
- Size: 120 mm²
- Insulation/Sheath: PVC / PVC
- Insulation Color: Red, Yellow, Blue, Black
- Standard Length: 500 meters
Quick Tips Before Purchase and Installation in Projects
- Ensure the cable meets the voltage requirements (0.6/1 kV) and is suitable for the "Low Voltage" classification.
- Select 4 Cores and 120 mm² based on load design and panel installations on-site.
- Since the cable is SWA Armoured, it is suitable when mechanical protection is required (such as in areas exposed to pressure or friction).
- Check the Insulation Color to facilitate identification of the cores during installation and maintenance (Red/Yellow/Blue/Black).
Why is IEC 60502-1 Standard Important for SWA Armoured Cables?
Compliance with the IEC 60502-1 standard helps ensure low voltage specifications, insulation quality, sheath integrity, and performance requirements for cables used in projects, thereby enhancing operational reliability and reducing the risk of failures due to non-compliance with specifications.
