STA Armoured Cable Stranded Copper Conductor 3x500+240mm2, 600/1000V, PVC Insulated | Riyadh Cables
(1126 Product Views)

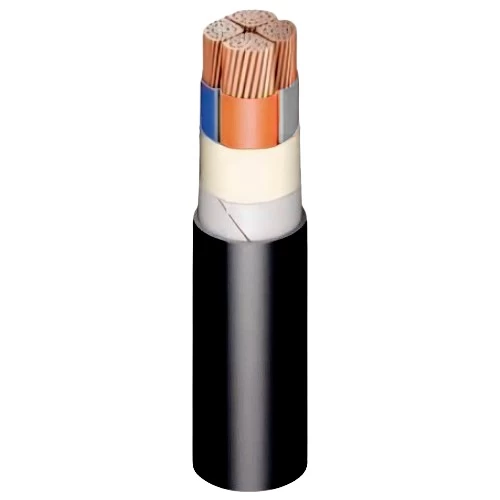

3.5 core armored power cable (CU/PVC/STA/PVC) stranded copper conductor, Arming wire diameter is 0.8mm, the cable withstands harsh environmental conditions, including moisture, corrosion and chemicals, Size 3×500+240 mm2, produced by Riyadh Cables Company.
Product description
3.5 core armored power cable (CU/PVC/STA/PVC) stranded copper conductor, Produced by Riyadh Cables Company. according to IEC 60502-1 (International Electrotechnical Commission) standard. Armored with layer of double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion, external factors, heat and moisture damage. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Phase Conductor Shape: Sectoral Stranded (sm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 3cx500 mm2 ) + 240mm2
- Number of Phase Wires: 53
- Number of Neutral Wires: 61
- Approx Diameter of Neutral Conductor: 20 mm
- Nominal Insulation Thickness of Phase: 2.8 mm
- Nominal Insulation Thickness of Neutral: 2.2 mm
- Armoring: STA (Steel Tape Armor)
- Nominal Steel Wire Diameter: 0.8 mm
- Nominal Sheath Thickness: 3.6 mm
- Approx Overall Diameter: 83 mm
- Weight: 21050 kg/km
- Length : 250 meters
- Phase Core Colors: (blue, brown, black, grey)
- Standard: IEC 60502-1
