Power Cable Copper Solid 6mm 3C 0.6/1kV, STA Armoured, PVC Insulated, 1000 m/drum | Red Sea Cables
(612 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Electrical Cable Solid Copper Armored with Steel tape (CU/PVC/STA/PVC), 3c , 6mm² size, 1000m length,Voltage 0.6/1 kV, from Red Sea Cables Company (Rescab). Available in multiple sizes and colors, providing superior quality at affordable prices.
Product description

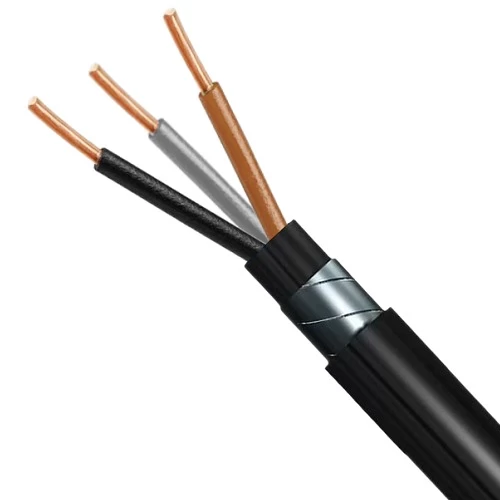

Armoured solid copper power cable (CU/PVC/STA/PVC), 3 core, Produced by Red Sea Cables (RESCAB) Company. Armored with layer of double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Double Steel Tape (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 1
- Nominal Insulation Thickness: 1 mm
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18 mm
- Max DC Conductor Resistance at 20°C: 3.08 ohm/km
- Weight: 610 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Blue, Brown, Black
- Standard: BS 5467, 6346 Latest
