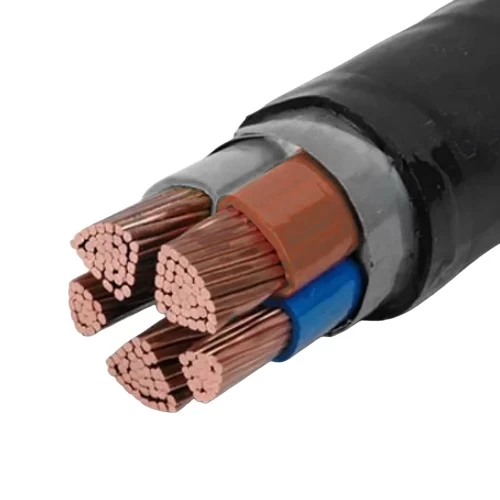

4.5 Core Stranded Electrical Cable 4x300+150 sq mm, 0.6/1kV, CU/PVC/STA/PVC, Length 250 meter | BAHRA
(867 Product Views)
Stranded Electrical Cable 4x300+150 sq mm 4.5 Core, 0.6/1kV, CU/PVC/STA/PVC, 250-meter Length, perfect for outdoor use in harsh and changing weather conditions, Manufactured by BAHRA Cables Company.
Product description
Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized double steel tape (STA) to give it mechanical strength and protect it from external pressures that fall on the cable, PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4.5 (4 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 4cx300 mm2 ) + 150mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.4 mm
- Nominal Insulation Thickness of Neutral: 1.8 mm
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 3.0 mm
- Approx Overall Diameter: 67.3 mm
- Weight: 12918 kg/km
- Standard Length: 250 meters
- Phase Core Colors: (Blue,Brown, Black, Grey, Green/Yellow)
- Standard: BS 5467
