4.5 Core Stranded Electrical Cable 4x240+120sq mm, 0.6/1kV, CU/PVC/STA/PVC, 300 meter/Drum | BAHRA
(1068 Product Views)
Stranded Electrical Cable 4x240+120sq mm4 .5 Core, 0.6/1kV, CU/PVC/STA/PVC, 300 meter/Drum, designed to withstand heavy electrical loads in industrial and infrastructure projects, Manufactured by BAHRA Cables Company.
Product description

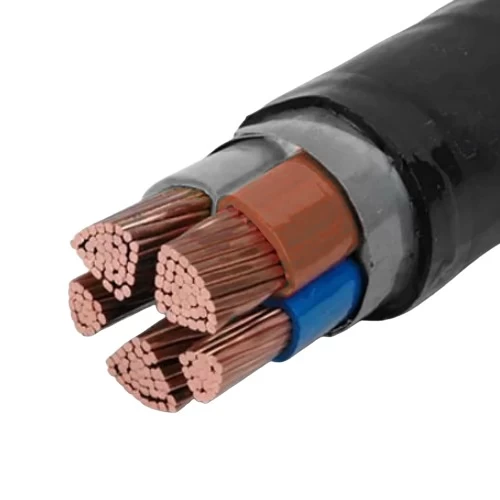

Armored stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized double steel tape (STA) to give it mechanical strength and protect it from external pressures that fall on the cable, PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4.5 (4 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 4cx240 mm2 ) + 120mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.2 mm
- Nominal Insulation Thickness of Neutral: 1.6 mm
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 2.8 mm
- Approx Overall Diameter: 60.1 mm
- Weight: 10526 kg/km
- Standard Length: 300 meters
- Phase Core Colors: (Blue, Brown, Black, Grey, Green/Yellow)
- Standard: BS 5467
