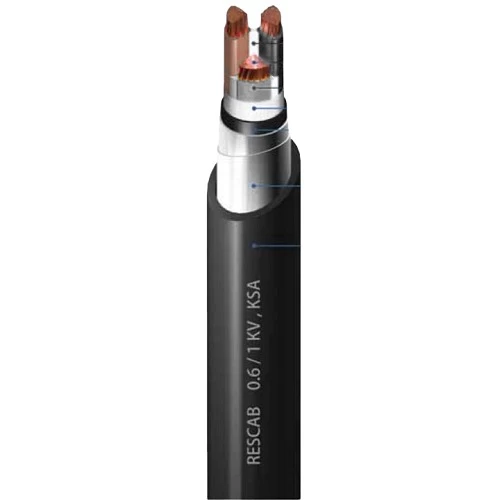

400mm 3 Core 0.6/1kV Stranded Copper Power Cable, STA Armoured, PVC Insulated and Sheathed, 250 meter | Red Sea Cables
(766 Product Views)
Armoured stranded copper power cable (CU/PVC/STA/PVC), size 400 mm, low voltage 0.6/1 kV, produced by Red Sea Cables Company (RESCAB). Provides excellent resistance to mechanical impacts caused by digging or exposure to heavy shocks in tough work environments.
Product description
Armored stranded copper power cable (CU/PVC/STA/PVC), Produced by Red Sea Cables (RESCAB) Company. Armored with a layer of double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also, PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Double Steel Tape (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of Wires: 61
- Nominal Insulation Thickness: 2.6 mm
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 3.3 mm
- Approx Overall Diameter: 75 mm
- Max DC Conductor Resistance at 20°C: 0.0470 ohm/km
- Weight: 15050 kg/km
- Standard Length: 250 meters
- Phase Core Color: Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
