4 mm 2 Core Solid Copper Cable, 600/1000V, STA Armed, PVC Insulated | Riyadh Cables
(1092 Product Views)

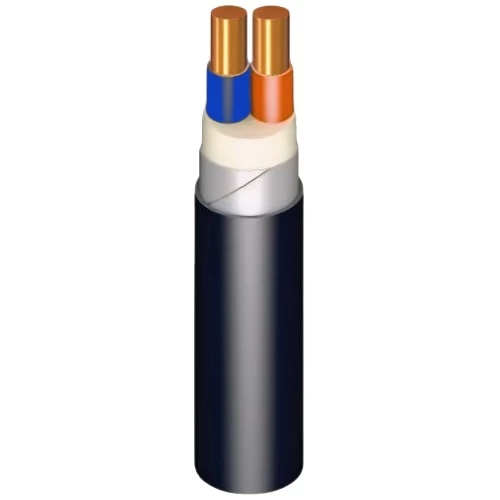

2 core solid copper cable, STA armed, PVC insulated, size 2×4 mm2, insulation colors (brown, blue), produced by Riyadh Cables Company according to (international electrotechnical commission) standard. armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable.
Product description
Two core armored power cable (CU/PVC/STA/PVC), solid copper conductor, produced by Riyadh Cables Company, Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 2 Core
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.25 mm
- Nominal Insulation Thickness: 1 mm
- Armoring: Double Steel Tape (STA)
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 16 mm
- Weight: 400 kg/km
- Cable Length: 1000 meters
- Phase Core Colors: (Brown, Blue)
- Standard: IEC 60502-1
