4 Core 50 sqmm Stranded Copper Cable 600/1000V, STA Armed, PVC Insulated, (Red, Yellow, Blue, Black) | Riyadh Cables
(1980 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

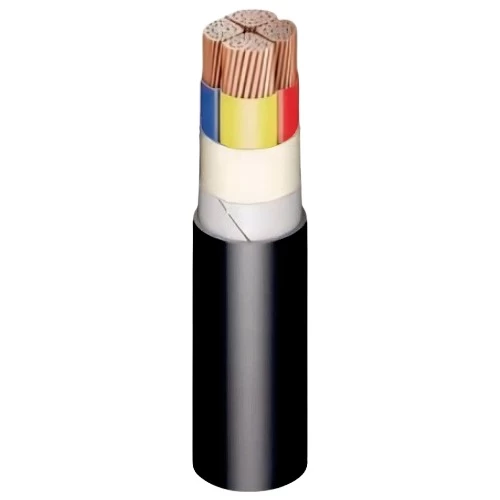

4 core STA armed cable (CU/PVC/STA/PVC), stranded copper conductor, It is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage, size 50 × 4 mm2, Produced by Riyadh Cables Company.
Product description
4 core STA armed cable (CU/PVC/STA/PVC), stranded copper conductor, Produced by Riyadh Cables Company, According with IEC 60502-1 (International Electrotechnical Commission) standard. Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors, also used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation : PVC
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Wire type: Sectoral Stranded
- Number of Cores: 4
- Size (Cross-Sectional Area): 50 mm2
- Number of wires : 6
- Nominal Insulation Thickness: 1.4 mm
- Armour: Double Steel Tape (STA)
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness : 2 mm
- Approx Overall Diameter : 33 mm
- Weight : 2625 kg/km
- Length : 500 meters
- Core Colors : Red, Yellow, Blue, Black
- Conformity According to International Standard: IEC 60502-1
