4 Core 25 sqmm Stranded Copper Cable 600/1000V, STA Armed, PVC Insulated, (Red, Yellow, Blue, Black) | Riyadh Cables
(1551 Product Views)

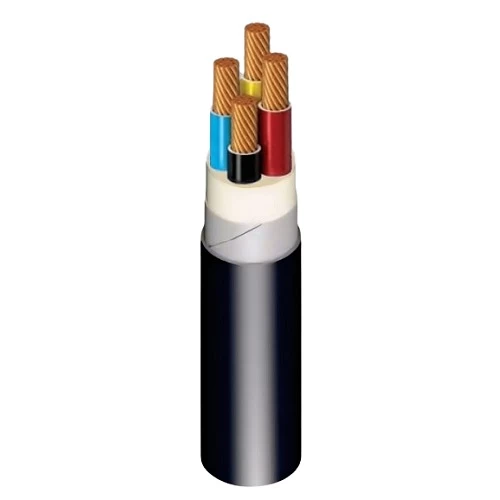

4 core STA armed cable (CU/PVC/STA/PVC), stranded copper conductor, The outer jacket provides protection for the cable from abrasion and external factors, intended for fixed installations, whether indoor or outdoor, size 25 × 4 mm2, Produced by Riyadh Cables Company.
Product description
4 core STA armed cable (CU/PVC/STA/PVC), stranded copper conductor, Produced by Riyadh Cables Company, According with IEC 60502-1 (International Electrotechnical Commission) standard. Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors, also used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation : PVC
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Wire Type: Round Stranded
- Number of Cores: 4
- Size (Cross-Sectional Area): 25 mm2
- Number of wires : 7
- Approx Conductor Diameter: 6.3 mm
- Nominal Insulation Thickness: 1.2 mm
- Armour: Double Steel Tape (STA)
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness : 1.8 mm
- Approx Overall Diameter : 28 mm
- Weight : 1750 kg/km
- Length : 1000 meters
- Core Colors : Red, Yellow, Blue, Black
- Conformity According to International Standard: IEC 60502-1
