300 sqmm 4 Core STA Armed Cable 600/1000V, Stranded Copper, PVC Insulated | Riyadh Cables
(1217 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Shop Now 4 Core stranded copper cable STA armored, PVC insulated, 4×300 mm2, nominal steel tape thickness 0.5 mm, number of wires 34, Intended for fixed installations, indoors and outdoors. Used to conduct electrical current in various domestic, commercial and industrial applications, (Blue, Brown, Black, Gray) color. Produced by Riyadh Cables Company.
Product description

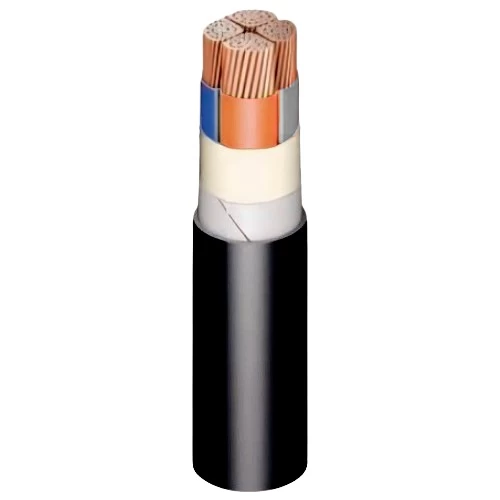

4 core STA armed cable (CU/PVC/STA/PVC), stranded copper conductor, Produced by Riyadh Cables Company. Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors, also used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation Material: PVC
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Wire Type: Sectoral Stranded
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 300 mm2
- Number of Wires: 34
- Nominal Insulation Thickness: 2.4 mm
- Armouring: Double Steel Tape (STA)
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness : 3.2 mm
- Approx Overall Diameter : 69 mm
- Weight : 14425 kg/km
- Cable Length : 250 meters
- Phase Core Color : Blue, Brown, Black, Gray
- Conformity According to International Standard: IEC 60502-1
