3 Phase 70mm Stranded Copper Cable, Steel Tape Armored, PVC Insulated, 0.6/1 kV | Alfanar
(1142 Product Views)

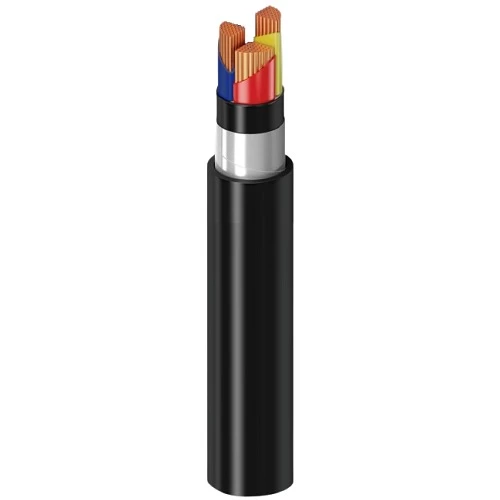

Three core stranded copper armored cable (CU/PVC/STA/PVC), size 70mm2, low voltage 600/1000V, phase core color is red, yellow and blue. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability produced by Alfanar Company.
Product description
Stranded copper armored cable (CU/PVC/STA/PVC), produced by Alfanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage.
- Conductor Type: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Double Layers of Galvanized Steel Tapes (STA)
- Outer Jacket: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Sector Shaped (sm)
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 70 mm2
- Max DC Conductor Resistance at 20°C: 0.2680 ohm/km
- Max AC Conductor Resistance at 90°C: 0.3220 ohm/km
- Current Rating Laid in Ground: 165 Ampere
- Current Rating Laid in Ducts: 128 Ampere
- Current Rating Laid in Free Air: 162 Ampere
- Approx Overall Diameter: 31.1 mm
- Weight: 2665 kg/km
- Phase Core Colors: (Red, Yellow, Blue)
- Standard: IEC 60502-1
