3 Core 25 mm Stranded Copper Cable 600/1000V, STA Armored, PVC Insulated, (Red, Yellow, Blue) | Riyadh Cables
(1294 Product Views)

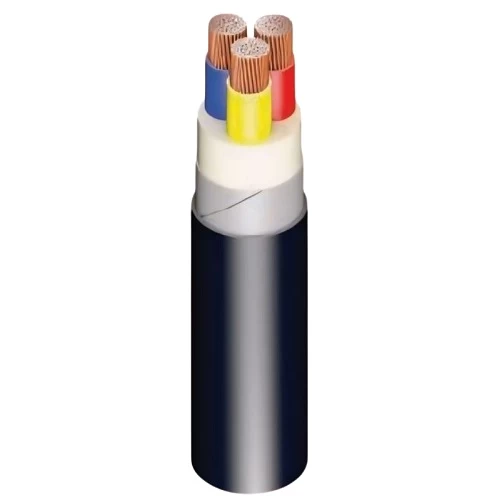

3 Core stranded copper cable STA armored, PVC insulated, Produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC material, the first layer provides excellent electrical insulation, (red, yellow, blue) color, cross-sectional area 25 mm2.
Product description
3 core STA armored cable (CU/PVC/STA/PVC), stranded copper, Produced by Riyadh Cables Company, Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, such as soil weight and passing cars. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. Intended for fixed installations, indoors and outdoors, also used to conduct electrical current in various domestic, commercial and industrial applications, where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Insulation: PVC
- Sheath: PVC
- Voltage: 600/1000 volts
- Wire Type: Round Stranded
- Number of Cores: 3
- Size (Cross-Sectional Area): 25 mm2
- Number of Wires: 7
- Approx Conductor Diameter: 6.3 mm
- Nominal Insulation Thickness: 1.2 mm
- Armour: Double Steel Tape (STA)
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness : 1.8 mm
- Approx Overall Diameter : 26 mm
- Weight : 1425 kg/km
- Length : 1000 meters
- Color : Red, Yellow, Blue
- Conformity According to International Standard: IEC 60502-1
