AWA Armored PVC Copper Cable Single Core Stranded 600/1000 V, Size 50 mm2, Black Color | Riyadh Cables
(1063 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

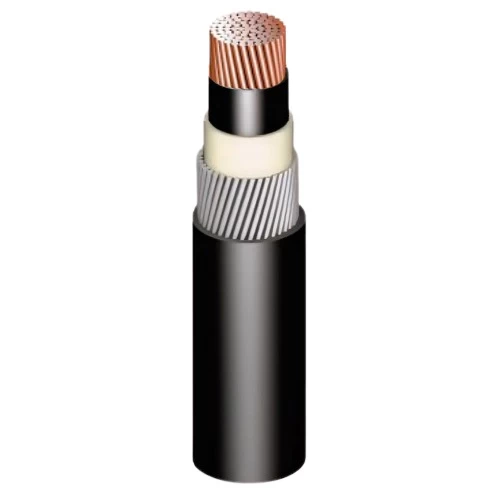

AWA Armored PVC copper cable single core stranded, black color, Produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors, cross-sectional area 50 mm2.
Product description
AWA Armored PVC Copper Cable Single Core Stranded, Produced by Riyadh Cables Company. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation : PVC
- Outer jacket : PVC
- Armoured : Aluminium Wire (AWA)
- Voltage : 600/1000 volts
- Size (cross-sectional area) : 50 mm2
- Number of wires : 19
- Approx conductor diameter : 8.8 mm
- Thickness of first insulation layer : 1.4 mm
- Thickness of outer jacket layer : 1.8 mm
- Nominal Aluminium Wire Diameter : 1.25 mm
- Approx overall diameter : 20 mm
- Weight : 835 kg/km
- Length : 1000 meters
- Color : black
- According to standard : IEC 60502-1
