Alfanar Copper Cable 120mm 0.6/1 kV, Single Core Stranded, AWA Armed, PVC Insulated
(799 Product Views)

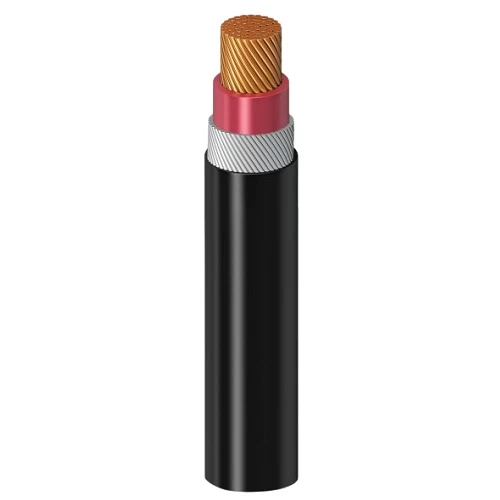

Single core stranded copper armored cable (CU/PVC/AWA/PVC), The insulation color is red, according to the International Electrotechnical Commission (IEC 60502-1) standard. It is armed with a layer of aluminum wire (AWA) to give it mechanical rigidity, size 120 mm2, produced by Al-Fanar Company.
Product description
Single core stranded copper armored cable (CU/PVC/AWA/PVC), Produced by Al Fanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage.
- Conductor Type: Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Single Layer of Round Non-Magnetic (Aluminium) Wires
- Outer Jacket: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 120 mm2
- Approx Overall Diameter: 24.9 mm
- Weight: 1640 kg/km
- Max DC Conductor Resistance at 20°C: 0.1530 ohm/km
- Max AC Conductor Resistance at 70°C: 0.1844 ohm/km
- Current Rating Buried Direct in Ground (Trefoil): 236 Ampere
- Current Rating Buried Direct in Ground (Flat Touched): 233 Ampere
- Current Rating In Buried Ducts (Trefoil): 205 Ampere
- Current Rating In Buried Ducts (Flat Touched): 212 Ampere
- Current Rating In Free Air (Trefoil): 266 Ampere
- Current Rating In Free Air (Flat Touched): 265 Ampere
- Current Rating In Free Air (Flat Spaced): 307 Ampere
- Phase Core Color: Red
- Standard: IEC 60502-1
