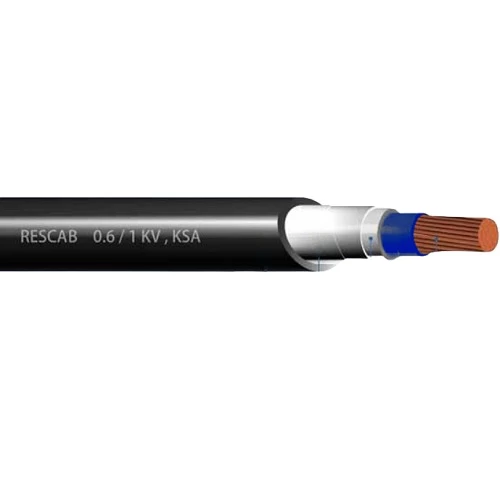

Single Core Stranded Copper Power Cable 25mm 0.6/1kV, ATA Armed, PVC Insulation, Blue Color, 1000 meter | Red Sea Cables

Armored stranded copper power cable (CU/PVC/ATA/PVC), Produced by Red Sea Cables (RESCAB) Company. Armored with a layer of aluminum tape (ATA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also, PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, The PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, and the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Armoring: Aluminum Tape (ATA)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 25 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.2 mm
• Nominal Aluminium Tape Thickness: 0.5 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 17 mm
• Max DC Conductor Resistance at 20°C: 0.727 ohm/km
• Weight: 510 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue
• Standard: BS 5467, 6346 Latest
