Stranded Aluminum Cable 3×300 mm 600/1000V, SWA Armed, PVC Insulated | Riyadh Cables
(1311 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

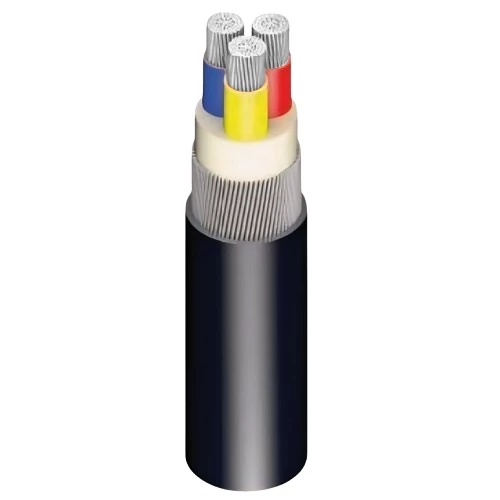

Stranded aluminum cable 3×300 mm2, SWA armed, PVC insulated, (red, yellow, blue) color, features low voltage 600/1000V, it is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage, produced by Riyadh Cables Company.
Product description
Aluminium armored cable, (AL/PVC/SWA/PVC), 3 core stranded conductor, Produced by Riyadh Cables Company, Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer sheath also provides protection for the cable against corrosion and external factors, making it suitable for use in outdoor or humid environments. It is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Stranded (rm)
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 300 mm2
- Number of Wires: 61
- Approx Conductor Diameter: 22.23 mm
- Nominal Insulation Thickness: 2.4 mm
- Armoring: SWA (Steel Wire Armor)
- Nominal Aluminum Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 3.1 mm
- Approx Overall Diameter: 74 mm
- Weight: 8475 kg/km
- Cable Length: 250 meters
- Phase Core Color: (Red, Yellow, Blue)
- Standard: IEC 60502-1
