35mm 4 Core 0.6/1kV Stranded Aluminium Cable, SWA Armed, PVC Insulation, Length 1000 meter | RESCAB
(832 Product Views)

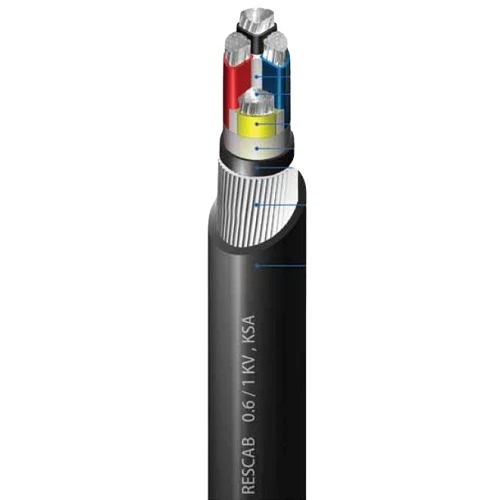

Armoured stranded aluminium power cable (AL/PVC/SWA/PVC), 4 core, 35mm2 size, low voltage 0.6/1kV conductor, Produced by Red Sea Cables (RESCAB) Company. The outer sheath provides additional protection to the cable from impacts, friction, and wear, while also preventing harmful UV rays from damaging the cable.
Product description
Armoured stranded aluminium power cable (AL/PVC/SWA/PVC), 4 core, Produced by Red Sea Cables (RESCAB) Company . Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Steel Wire Diameter: 1.6 mm
- Nominal Sheath Thickness: 1.9 mm
- Approx Overall Diameter: 33 mm
- Max DC Conductor Resistance at 20ยฐC: 0.868 ohm/km
- Weight: 1870 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
