3.5 Core Stranded Aluminium Electrical Cable, 3×240+120mm2, PVC Insulation, SWA Armed, 0.6/1kV, 250 m | Red Sea Cables
(563 Product Views)

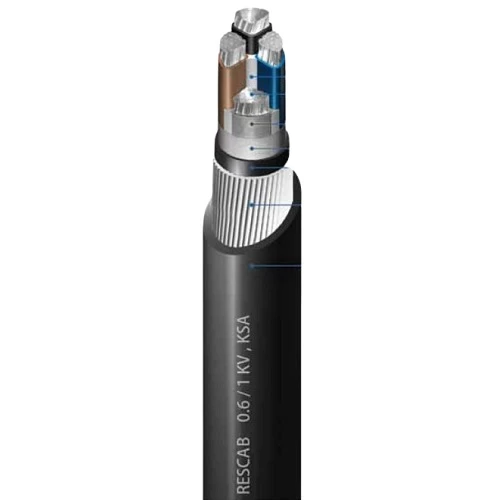

Armored Aluminum Stranded Power Cable (AL/PVC/SWA/PVC), 3 cores + neutral, size 3×240+120 mm², 0.6/1 kV, Length 250m, From Red Sea Cables (Rescab). Made with a galvanized steel wire armoring (SWA) that enhances its mechanical strength, offering protection against external stresses and physical damage.
Product description
Armoured stranded aluminium power cable (AL/PVC/SWA/PVC), 3 core + neutral lien, Produced by Red Sea Cables (RESCAB) Company. Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): (3×240 mm²) + 120 mm²
- Number of Phase Wires: 37
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.2 mm
- Nominal Insulation Thickness of Neutral: 1.6 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 2.9 mm
- Approx Overall Diameter: 65 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.125 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.253 ohm/km
- Weight: 12510 kg/km
- Standard Length: 250 meters
- Phase Core Colors: (Blue,Brown,Black,Gray)
- Standard: BS 5467, 6346 Latest
