3.5 Aluminium Cable C Stranded, 3×300 + 150mm2, PVC Insulation, SWA Armed, 0.6/1kV, 250 meter | Rescab
(648 Product Views)

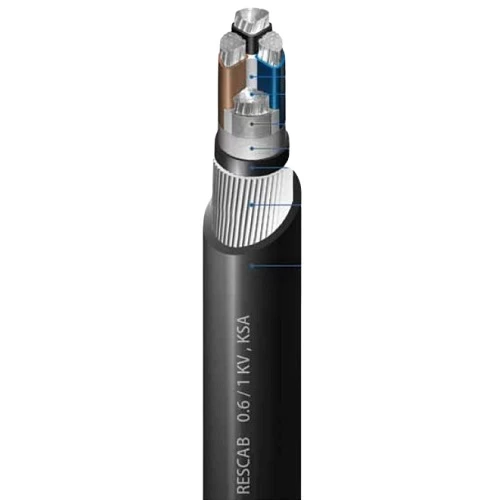

Power Cable Armed Aluminum Stranded (AL/PVC/SWA/PVC), 3c + neutral, size 3×300 + 150 mm², 0.6/1 kV, Produced by Red Sea Cables (Rescab). Suitable for outdoor electrical installations like substations, power towers, or electrical lines that require protection from severe weather or environmental elements.
Product description
Armoured stranded aluminium power cable (AL/PVC/SWA/PVC), 3 core + neutral lien, Produced by Red Sea Cables (RESCAB) Company. Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): (3×300 mm²) + 150 mm²
- Number of Phase Wires: 37
- Number of Neutral Wires: 19
- Nominal Insulation Thickness of Phase: 2 mm
- Nominal Insulation Thickness of Neutral: 1.8 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 3.1 mm
- Approx Overall Diameter: 72 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.100 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.206 ohm/km
- Weight: 15070 kg/km
- Standard Length: 250 meters
- Phase Core Colors: (Blue,Brown,Black,Gray)
- Standard: BS 5467, 6346 Latest
