150mm 4 Core 0.6/1kV Stranded Aluminium Cable, SWA Armed, PVC Insulation, Length 500 meter | RESCAB
(694 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

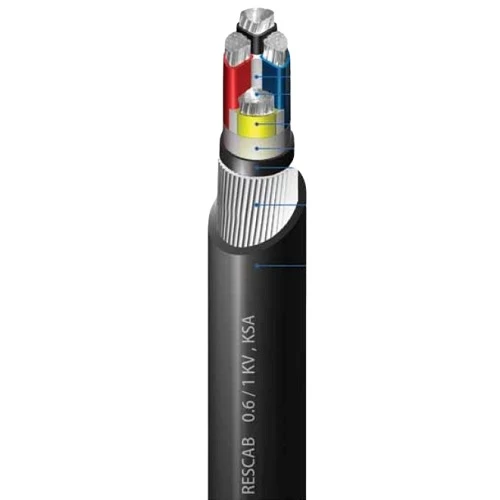

Armored Stranded Aluminum Cable (AL/PVC/SWA/PVC), 4 Cores, Size 150 mm², Low Voltage 0.6/1 kV, Manufactured by Red Sea Cables (Rescap). It is designed to withstand environments exposed to harsh conditions or mechanical.
Product description
Armoured stranded aluminium power cable (AL/PVC/SWA/PVC), 4 core, Produced by Red Sea Cables (RESCAB) Company . Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 150 mm2
- Number of Wires: 37
- Nominal Insulation Thickness: 1.8 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 2.7 mm
- Approx Overall Diameter: 57 mm
- Max DC Conductor Resistance at 20°C: 0.206 ohm/km
- Weight: 5490 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
