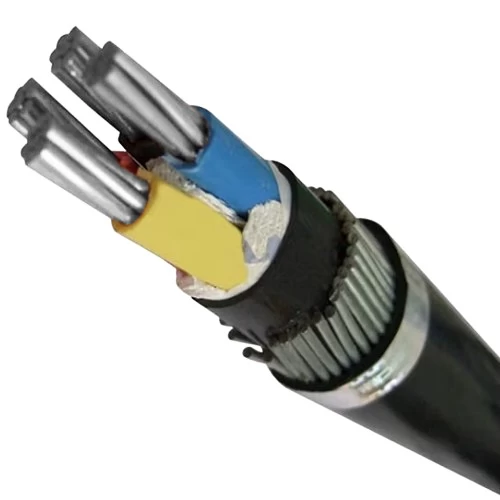

120mm 4 Core 0.6/1kV Electric Cable, Stranded Aluminum, PVC Insulated, SWA Armoured, 500 meter Length | BAHRA
(858 Product Views)
Aluminum armored-stranded electrical cable 120mm 4 Core 0.6/1kV (AL/PVC/SWA/PVC), Stranded Aluminum, PVC Insulated, SWA Armoured, 500 meter/Drum, Offers excellent resistance to corrosion and harsh environmental conditions, Produced by BAHRA Cables Company.
Product description
Armored-stranded aluminum power cable. Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.6 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 47.8 mm
- Weight: 4473 kg/km
- Standard Length Cable: 500 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
