Bahra 35mm 2 Core 0.6/1kV Cable, AL/PVC/STA/PVC, Stranded Aluminum, 1000 meter
(959 Product Views)

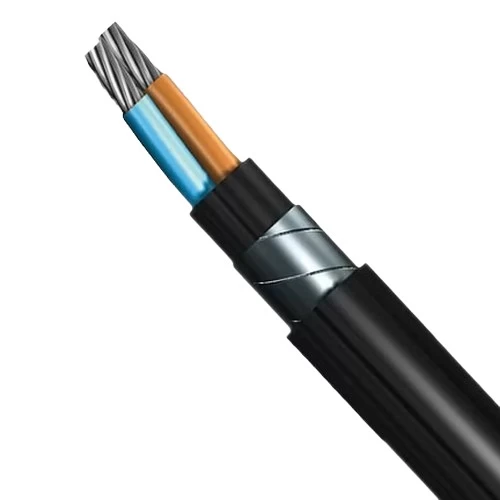

Armoured stranded aluminum power cable (AL/PVC/STA/PVC), 2 core, 35mm2 size conductor, Low Voltage 0.6/1kV, PVC outer jacket provides additional protection to the cable from harsh weather conditions such as UV rays, moisture, manufactured by Bahra Cables, brown, blue.
Product description
Armoured stranded aluminum power cable (AL/PVC/STA/PVC), Produced by BAHRA Cables Company. Armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Double Steel Tapes (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 35 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Steel Tape Thickness: 0.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 25.9 mm
- Weight: 794 kg/km
- Standard Packaging Cable: 1000 meters
- Phase Core Colors: brown, blue
- Standard: BS 5467
