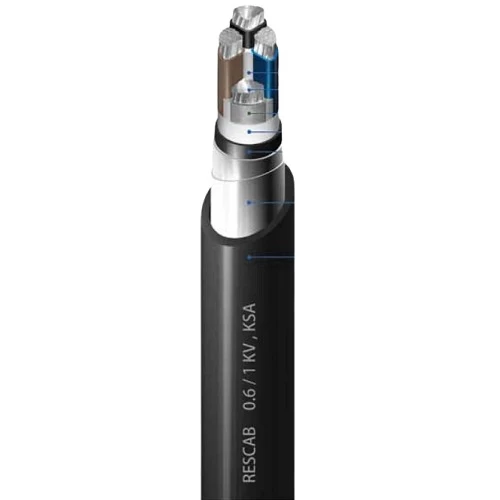

Armoured stranded aluminium power cable (AL/PVC/STA/PVC), four core, 150mm2 size conductor, 0.6/1kV, PVC layer forms excellent insulation, armored with layer of double steel tape (STA) to give it mechanical strength to protect it from external pressures, standard length 500 meters, produced by Red Sea Cables (RESCAB) company.
Product description
Armoured stranded aluminium power cable (AL/PVC/STA/PVC), Produced by Red Sea Cables (RESCAB) Company. armored with layer of double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 150 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.8 mm
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 2.6 mm
- Approx Overall Diameter: 54 mm
- Max DC Conductor Resistance at 20°C: 0.206 ohm/km
- Weight: 3965 kg/km
- Standard Length: 500 meters
- Phase Core Color: Blue, Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
