3x25 + 16mm 0.6/1kV,  3.5C Power Cable, Stranded Aluminum Conductor, STA Armed, PVC Insulation, Length 1000 m | RESCAB

3x25 + 16mm 0.6/1kV, 3.5C Power Cable, Stranded Aluminum Conductor, STA Armed, PVC Insulation, Length 1000 m | RESCAB

(362 Product Views)

YouMats

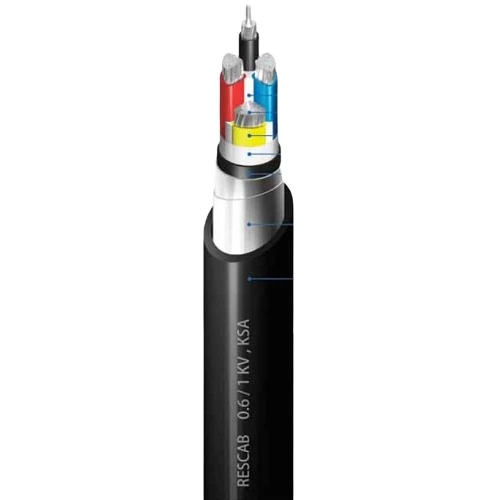

Armored stranded aluminum power cable (AL/PVC/STA/PVC), 3C + neutral line, 3×25+16mm2 size wire, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, armored with layer of galvanized steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Armoured stranded aluminum power cable (AL/PVC/STA/PVC), produced by Red Sea Cables (RESCAB) Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with layer of galvanized steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

  • Conductor: Stranded Aluminum
  • Insulation Material: PVC (Polyvinyl Chloride)
  • Armoring: Galvanized Steel Tape (STA)
  • Outer Sheath: PVC
  • Voltage: 0.6/1kV
  • Number of Cores: 3.5 Core (3 Core + Neutral Line)
  • Conductor Size (Cross-Sectional Area): ( 3cx25 mm2 ) + 16mm2
  • Number of Phase Wires: 7
  • Number of Neutral Wires: 7
  • Nominal Insulation Thickness of Phase: 1.2 mm
  • Nominal Insulation Thickness of Neutral: 1 mm
  • Nominal Steel Tape Thickness: 0.2 mm
  • Nominal Sheath Thickness: 1.8 mm
  • Approx Overall Diameter: 28 mm
  • Max DC Conductor Resistance at 20°C (Ph): 1.20 ohm/km
  • Max DC Conductor Resistance at 20°C (Ne): 1.91 ohm/km
  • Weight: 1045 kg/km
  • Standard Length : 1000 meters
  • Phase Core Colors: (Red, Yellow, Blue, Black)
  • Standard: IEC 60502-1
