3.5 Core 500 sq mm Aluminum Cable 600/1000V, STA Armed, PVC Insulation | Riyadh Cables
(1132 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

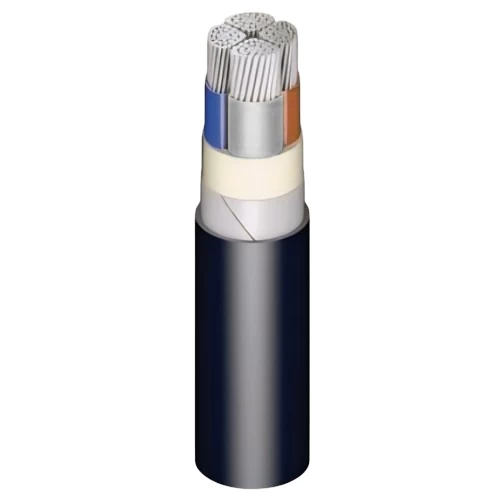

STA armored aluminum cable size 3×500+240 mm2, 3.5 core stranded, PVC insulated, insulation color (blue, brown, black, gray), according to IEC 60502-1 (international electrotechnical commission) standard, insulated with two layers of high-quality PVC (polyvinyl chloride) material, produced by Riyadh Cables Company.
Product description
Aluminum armored power cable (AL/PVC/STA/PVC), 3.5 core stranded, Produced by Riyadh Cables Company, Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer sheath also provides protection for the cable against corrosion and external factors, making it suitable for use in outdoor or humid environments. It is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Phase Conductor Shape: Sectoral Stranded (sm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3c×500 mm2 ) + 240 mm2
- Number of Phase Wires: 53
- Number of Neutral Wires: 61
- Approx Diameter of Neutral Conductor: 19.89 mm
- Nominal Insulation Thickness of Phase: 2.8 mm
- Nominal Insulation Thickness of Neutral: 2.2 mm
- Armoring: STA (Steel Tape Armor)
- Nominal Steel Tape Thickness: 0.8 mm
- Nominal Sheath Thickness: 3.6 mm
- Approx Overall Diameter: 83 mm
- Weight: 10425 kg/km
- Cable Length: 250 meters
- Phase Core Colors: (Blue, Brown, Black, Gray)
- Standard: IEC 60502-1
