3 Phase 300mm Cable, Stranded Aluminum Conductor 600/1000V, STA Armored, PVC Insulated | Riyadh Cables
(1406 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Aluminium armored cable, (AL/PVC/STA/PVC), 3 core stranded conductor, Length 250 metres, used in various domestic, commercial and industrial applications where there is a risk of mechanical damage, produced by Riyadh Cables Company, Size 3x300mm2.
Product description

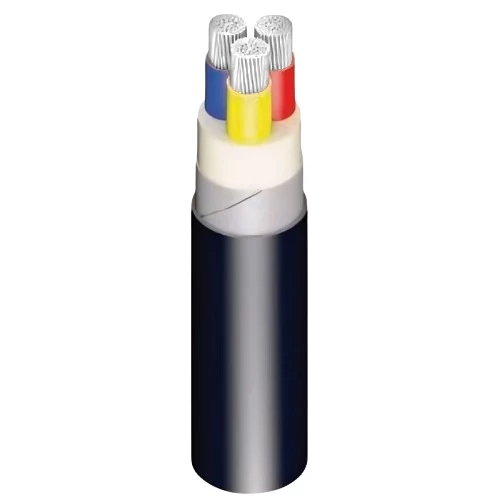

Aluminium armored cable, (AL/PVC/STA/PVC), 3 core stranded conductor, Produced by Riyadh Cables Company. according to IEC 60502-1 (International Electrotechnical Commission) standard. Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer sheath also provides protection for the cable against corrosion and external factors, making it suitable for use in outdoor or humid environments. It is used to conduct electrical current in various domestic, commercial and industrial applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage : 600/1000 volts
- Conductor Shape: Stranded (rm)
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 300 mm2
- Number of Wires: 61
- Approx Conductor Diameter: 22.23 mm
- Nominal Insulation Thickness: 2.4 mm
- Armoring: STA (Steel Tape Armor)
- Nominal Aluminum Wire Diameter: 0.5 mm
- Nominal Sheath Thickness: 3 mm
- Approx Overall Diameter: 70 mm
- Weight: 6400 kg/km
- Length : 250 meters
- Phase Core Colors: (red, yellow, blue)
- Standard: IEC 60502-1
