240sq mm Three Core 0.6/1kV Electric Cable, AL/PVC/STA/PVC, Stranded Aluminum, 500 meter | BAHRA
(813 Product Views)

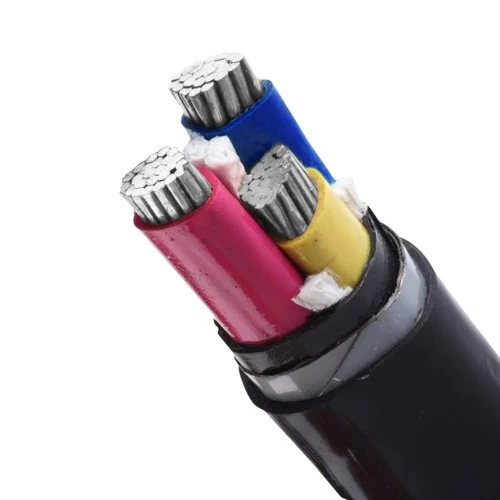

Stranded aluminum power cable (AL/PVC/STA/PVC), 3 phase, 240mm2 size conductor, Low Voltage 0.6/1kV, The cable is manufactured according to the highest international standards of quality and safety, red, yellow, blue, produced by Bahra Cables Company.
Product description
Stranded aluminum power cable (AL/PVC/STA/PVC), Produced by BAHRA Cables Company. Armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Aluminum Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armouring: Galvanized Double Steel Tapes (STA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 240 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 2.2 mm
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 2.8 mm
- Approx Overall Diameter: 62.6 mm
- Weight: 5073 kg/km
- Standard Cable Length : 500 meters
- Phase Core Colors: Red, Yellow, Blue
- Standard: IEC 60502-1
