16mm 3 Core 0.6/1kV Electrical Cable, AL/PVC/STA/PVC, Stranded Aluminum, 1000 meter Length | BAHRA

16mm 3 Core 0.6/1kV Electrical Cable, AL/PVC/STA/PVC, Stranded Aluminum, 1000 meter Length | BAHRA

(391 Product Views)

YouMats

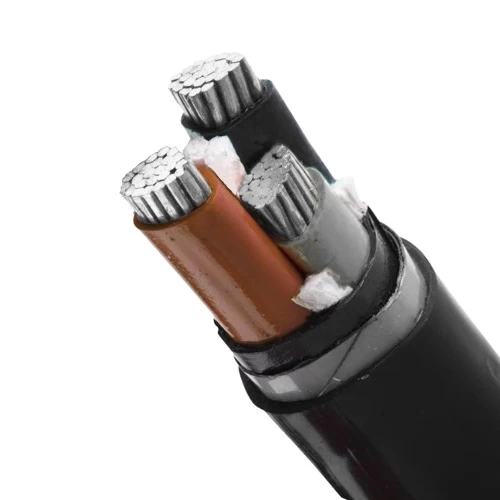

Stranded aluminum power cable (AL/PVC/STA/PVC), 3 phase, 16mm2 size conductor, Low Voltage 0.6/1kV, Made of aluminium strands, making it lightweight, malleable and flexible, making installation and installation easy, manufactured by Bahra Cables, brown, black, grey.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Stranded aluminum power cable (AL/PVC/STA/PVC), Produced by BAHRA Cables Company. Armored with galvanized double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable, As well PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

  • Conductor: Aluminum Copper
  • Insulation Material: PVC (Polyvinyl Chloride)
  • Armouring: Galvanized Double Steel Tapes (STA)
  • Outer Sheath: PVC
  • Voltage: 0.6/1kV
  • Number of Cores: 3
  • Conductor Size (Cross-Sectional Area): 16 mm2
  • Number of wires: 7
  • Nominal Insulation Thickness: 1 mm
  • Nominal Steel Tape Thickness: 0.2 mm
  • Nominal Sheath Thickness: 1.8 mm
  • Approx Overall Diameter: 21.3 mm
  • Weight: 692 kg/km
  • Standard Cable Length : 1000 meters
  • Phase Core Colors: brown, black, grey
  • Standard: BS 5467
