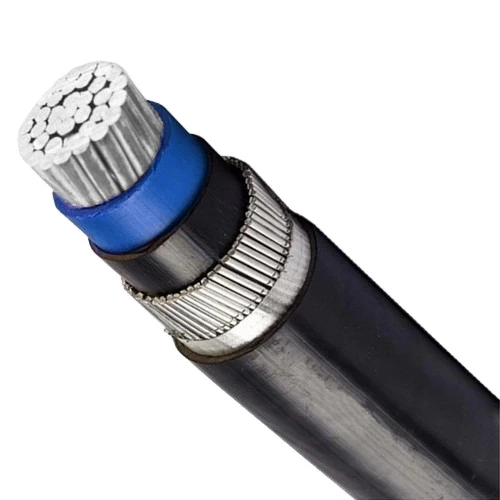

150sq mm 0.6/1kV Single Core Power Cable, Stranded Aluminum Conductor, PVC Insulated and Sheathed, Blue Color, Length 1000 meter | BAHRA

Armored stranded aluminum power cable (AL/PVC/AWA/PVC), produced by BAHRA Cables Company according to British standard (BS 5467). Armored with layer of aluminum wires (AWA) to give it mechanical strength to protect it from external pressures that fall on the cable. As well as PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is a risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

• Conductor: Stranded Aluminum
• Insulation Material: PVC (Polyvinyl Chloride)
• Armoring: AWA (Aluminum Wire Armor)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 150 mm2
• Number of wires: 19
• Nominal Insulation Thickness: 1.8 mm
• Nominal Aluminum Wire Diameter: 1.6 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 28 mm
• Weight: 1150 kg/km
• Standard Cable Length: 1000 meters
• Phase Core Color: Blue
• Standard: BS 5467
