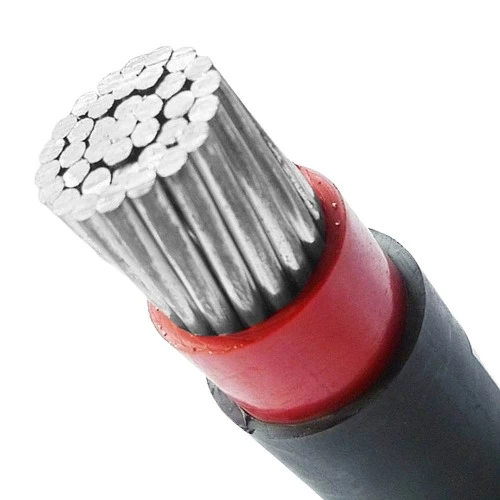

Stranded Aluminum Electric Cable (AL/PVC/PVC), Single Core, 240 sq mm, Low Voltage 0.6/1 kV, manufactured by Red Sea Cables Company (RESCAB). It provides excellent protection against electrical leakage and offers reliable performance for both indoor and outdoor applications.
Product description
Stranded aluminum power cable (AL/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 1
- Conductor Size (Cross-Sectional Area): 240 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 2.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 28 mm
- Max DC Conductor Resistance at 20°C: 0.125 ohm/km
- Weight: 1160 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red
- Standard: IEC 60502-1
