1C Cable 120mm 0.6/1kV, Stranded Aluminium Wire, PVC Insulation, Red Color, 1000 meter | Red Sea Cables
(492 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

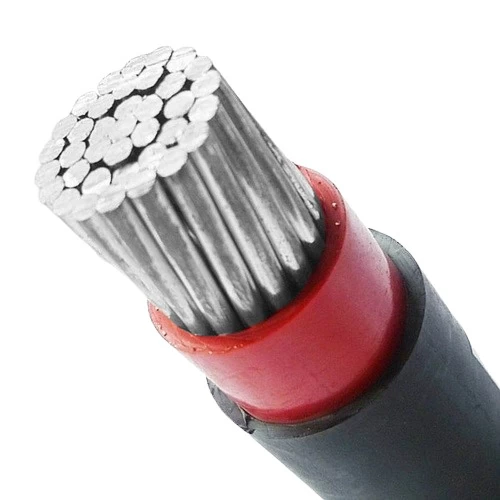

Stranded Aluminum Electric Cable (AL/PVC/PVC), Single Core, 120 sq mm, Low Voltage 0.6/1 kV, manufactured by Red Sea Cables Company (RESCAB). It delivers reliable performance thanks to its PVC insulating layer, which prevents electrical leakage and protects against moisture and weather effects.
Product description
Stranded aluminum power cable (AL/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company. PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminium
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 1
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 19
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 1.5 mm
- Approx Overall Diameter: 20 mm
- Max DC Conductor Resistance at 20°C: 0.253 ohm/km
- Weight: 605 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red
- Standard: IEC 60502-1
