Riyadh Cable 70 mm 600/1000V, Stranded Single Core Aluminum Conductor, PVC Insulated
(897 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

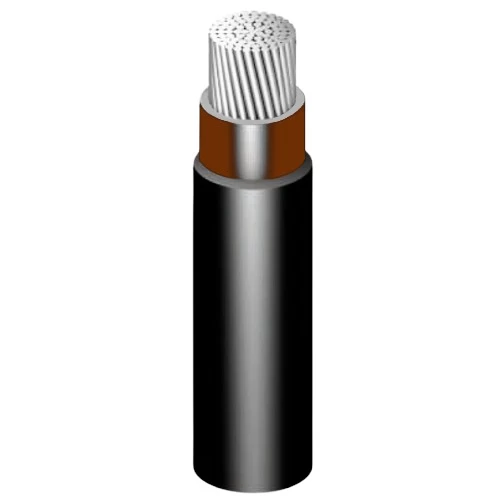

Stranded single core aluminium PVC cable 1×70 mm2, brown color, it is characterized by low voltage 600/1000V, produced by Riyadh Cables Company, it is used lighting equipment, central air conditioners, power plugs, and home appliances.
Product description
Stranded single core electrical aluminium cable (AL/PVC/PVC), produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 70 mm2
- Number of Wires: 19
- Approx Conductor Diameter: 10.55 mm
- Nominal Insulation Thickness: 1.4 mm
- Nominal Sheath Thickness: 1.4 mm
- Approx Overall Diameter: 17 mm
- Weight: 375 kg/km
- Cable Length: 1000 meters
- Phase Core Color: Brown
- Standard: IEC 60502-1
