240mm 0.6/1kV Single Core Cable, Stranded Aluminum Conductor, PVC Insulation , Black Color,1000 meter Length| BAHRA
(540 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

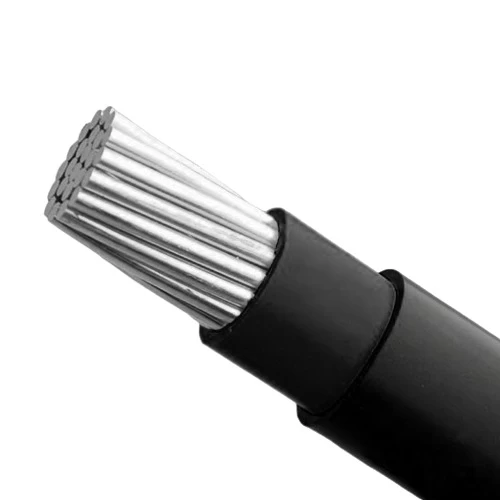

Unarmored stranded aluminum cable (AL/PVC/PVC), single core, 240mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, this makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage.
Product description
Unarmored stranded aluminum power cable (AL/PVC/PVC), Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Aluminum
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 1
- Conductor Size (Cross-Sectional Area): 240 mm2
- Number of wires: 37
- Nominal Insulation Thickness:2.2 mm
- Nominal Sheath Thickness: 1.8mm
- Approx Overall Diameter: 27.4 mm
- Weight: 1101 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Black
- Standard: IEC 60502-1
