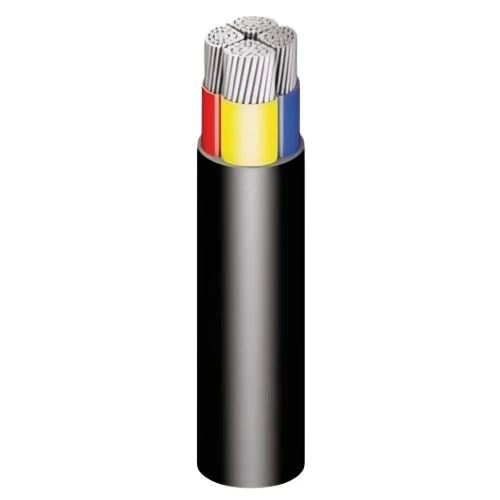

4×185 mm Stranded Aluminum Cable 600/1000V PVC Insulated | Riyadh Cables
(2706 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded aluminum cable PVC insulated, four core, size 4×185 mm2, it is used in power plugs, and home appliances, available in a variety of sizes and colors with highest quality and best prices, insulation color (red, yellow, blue, black), produced by Riyadh Cables Company.
Product description
Stranded 4 core electrical aluminium cable (AL/PVC/PVC), produced by Riyadh Cables Company, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Sectoral Stranded (sm)
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of Wires: 30
- Nominal Insulation Thickness: 2 mm
- Nominal Sheath Thickness: 2.7 mm
- Approx Overall Diameter: 55 mm
- Weight: 3800 kg/km
- Cable Length: 250 meters
- Phase Core Color: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
