CU/LSNH Stranded Electrical Wire, 630mm2, 450/750V, Red Color, 500 m | RESCAB
(829 Product Views)

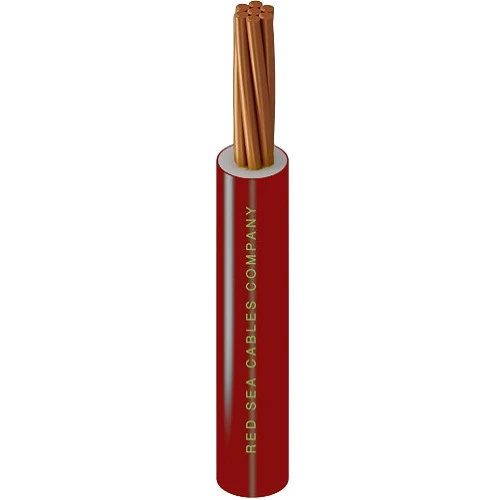

Stranded electrical copper wire (CU/LSNH), 630mm2 size, 450/750 volts, From Red Sea Cables, it can be easily integrated into existing wiring systems, and is easy to install and handle, which reduces installation costs, red color.
Product description
Stranded electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, therefore, it is Suitable for use in fixed and protected installations in metallic or non metallic conduits, ducts or trunks, in areas where smoke and acid gas evolution could pose a hazard to personnel or sensitive equipments in residential buildings, schools, hospitals, hotels, shopping centers, subways, etc. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Wire Type: H07Z-R
- Conductor: Stranded Copper (Class 2)
- Insulation Material: LSHF (Low Smoke Halogen Free)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 630 mm2
- Nominal Insulation Thickness: 0.7 mm
- Approx Overall Diameter: 2.8 mm
- Max DC Conductor Resistance at 20°C: 0.0283 ohm/km
- Insulation Color: Red
- Standard Length: 500 meter/Drum
- Standard: BS EN 50525-3-41
