CU/LS0H Flexible Copper Electrical Wire, 6mm2, 450/750V, Black Color, Coil Length 100 yards | RESCAB

CU/LS0H Flexible Copper Electrical Wire, 6mm2, 450/750V, Black Color, Coil Length 100 yards | RESCAB

(824 Product Views)

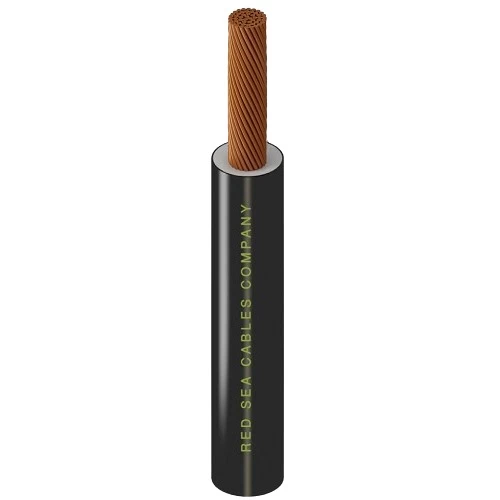

Flexible electrical copper wire (CU/LSHF), 6mm2 size, 450/750 volts, Red Sea Cables, black in color and available in many other colors, are the perfect choice for those looking for a durable and long-lasting product, capable of withstanding the toughest environmental challenges.

in stock

Quantity

Call Now

🔗 Related Content

PVC Coated Flexible Conduit, Size 4... Liquid Tight Flexible Conduit, Size... Riyadh 6 AWG THHN Stranded Copper A... 4mm 450/750 Volt Solid Copper Wire,... 12x1.5mm 0.6/1kV Stranded Copper Co... CU/LS0H Flexible Copper Electrical... CU/0HLS Flexible Copper Electrical... CU/0HLS Flexible Copper Wire, 35mm2...

Product description

Flexible electrical copper wire (CU/LSHF), produced by Red Sea Cables Company. Insulated with low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire. Suitable for use in indoor fixed installations in dry locations, where particular flexibility is required. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Wire Type: H07Z-K
Conductor: Flexible Copper (Class 5)
Insulation Material: LSHF (Low Smoke Halogen Free)
Voltage: 450/750 volts
Max. Temperature: +90°C
Conductor Size (Cross-Sectional Area): 6 mm2
Nominal Insulation Thickness: 0.8 mm
Approx Overall Diameter: 4.7 mm
Max DC Conductor Resistance at 20°C: 3.30 ohm/km
Standard Length: 100 Yards (91.4 meter) / Coils
Insulation Color: Black
Standard: BS EN 50525-3-41
